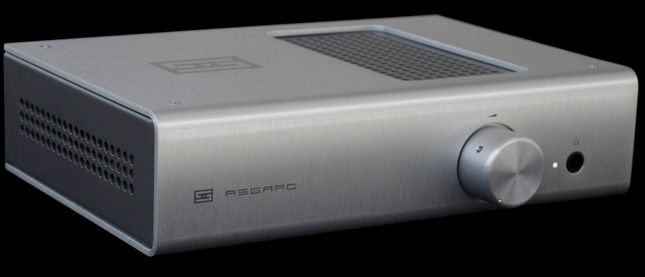

SINGLE ENDED CLASS A FET HEADPHONE AMPLIFIER ZERO FEEDBACK | SINGLE VOLTAGE GAIN STAGE
Specifications
Headphone Impedance: 8-600 ohms Gain: 5 (14db) Frequency Response: 2Hz-200KHz, -3dB Maximum Output: 20V P-P THD: Less than 0.1%, 20Hz-20KHz, at 1V Topology: Fully discrete FET, Class-A single-ended, zero feedback, noninverting, single voltage gain stage Power Consumption: 35W Size: 9 x 6.75 x 2.25” Weight: 5 lbs
