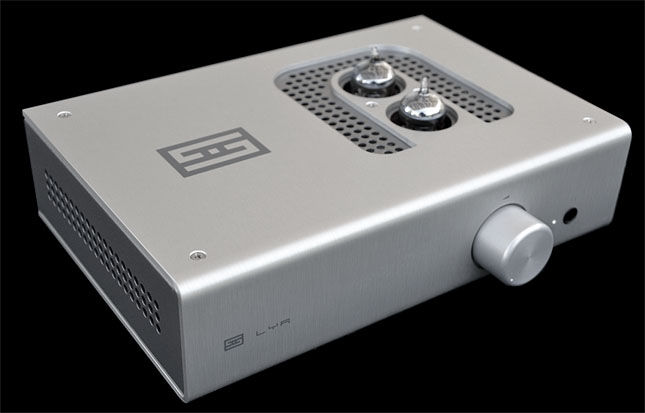

HYBRID HEADPHONE AMPLIFIER DYNAMICALLY ADAPTIVE | ZERO FEEDBACK | NONINVERTING
Specifications Headphone Impedance: 8-600 ohms Gain: 10 (20 dB) Frequency Response: 2Hz-200KHz, -3dB Maximum Output: 40V P-P into 32 ohms typ THD: Less than 0.1%, 20Hz-20KHz, at 1V Topology: Dynamically Adaptive Dual-Mode Class A, zero feedback, noninverting, hybrid tube/MOSFET, single voltage gain stage, DC-coupled input and output Tube Complement: ECC88 or 6BZ7 dual triode, 1 per channel (rollable to all 6922/6DJ8/ECC88/6BZ7 types and similar) Power Consumption: 30W Size: 9 x 6.75 x 3.25” Weight: 7 lbs
